Achievements¶

This page is dedicated to the achievements game tab and methods to interact with it.

ERSAchievementTab¶

ERSAchievementTab = enum(SUMMARY, QUESTS, DIARIES);

An enum representing each of the Achievements gametab tabs.

ERSAchievementDiary¶

ERSAchievementDiary = enum(
  ARDOUGNE,
  DESERT,
  FALADOR,
  FREMENNIK,
  KANDARIN,
  KARAMJA,
  KOUREND_AND_KEBOS,
  LUMBRIDGE_AND_DRAYNOR,
  MORYTANIA,
  VARROCK,
  WESTERN_PROVINCES,
  WILDERNESS
);

An enum representing each of the achievement diaries available.

TRSAchievementsSummary¶

Helper record used to interact with the {ref]Achievements gametab “Summary” tab:

TRSAchievementsSummary.SetupGameTab¶

procedure TRSAchievementsSummary.SetupGameTab();

Internal method used to setup {ref]TRSAchievementsSummary coordinates.

This is automatically called for you on the Achievements.Summary variable.

TRSQuestList¶

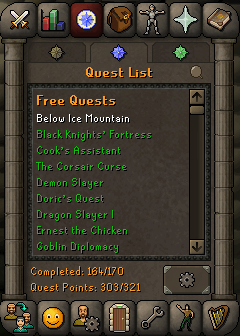

Helper record used to interact with the {ref]Achievements gametab “Quests” tab:

TRSQuestList.SetupGameTab¶

procedure TRSQuestList.SetupGameTab();

Internal method used to setup {ref]TRSQuestList coordinates.

This is automatically called for you on the Achievements.Quests variable.

TRSDiarySlot¶

Helper record used to interact with a TRSDiaryList slot.

TRSDiaryList¶

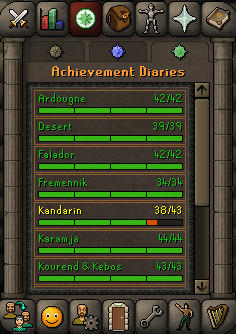

Helper record used to interact with the {ref]Achievements gametab “Diaries” tab:

TRSDiaryList.SetupGameTab¶

procedure TRSDiaryList.SetupGameTab();

Internal method used to setup {ref]TRSDiaryList coordinates.

This is automatically called for you on the Achievements.Diaries variable.

TRSDiaryList.GetSlots¶

function TRSDiaryList.GetSlots(): array of TRSDiarySlot;

Returns the slots available in the diary tab as an array of TRSDiarySlot.

Example:

img := Target.GetImage();
for slot in Achievements.Diaries.GetSlots() do
begin
  img.DrawColor := $FFFFFF;
  img.DrawBox(slot.Bounds);

  img.DrawColor := $00FFFF;
  img.DrawBox(slot.Name);

  img.DrawColor := $FF00FF;
  img.DrawBox(slot.Number);

  img.DrawColor := $FFFF00;
  img.DrawBoxArray(slot.Levels, False);
end;

img.Show();
img.Free();

TRSDiaryList.GetSlot¶

function TRSDiaryList.GetSlot(diary: ERSAchievementDiary): TRSDiarySlot;

Returns the slot of the specified diary as a TRSDiarySlot.

Example:

img := Target.GetImage();
slot := Achievements.Diaries.GetSlot(ERSAchievementDiary.FREMENNIK);

img.DrawColor := $FFFFFF;
img.DrawBox(slot.Bounds);

img.DrawColor := $00FFFF;
img.DrawBox(slot.Name);

img.DrawColor := $FF00FF;
img.DrawBox(slot.Number);

img.DrawColor := $FFFF00;
img.DrawBoxArray(slot.Levels, False);

img.Show();
img.Free();

TRSDiaryList.ScrollTo¶

procedure TRSDiaryList.ScrollTo(diary : ERSAchievementDiary);

Scrolls to the specified diary.

Example:

Achievements.Diaries.ScrollTo(ERSAchievementDiary.MORYTANIA);

TRSAchievements¶

Main record used to interact with the {ref]Achievements gametab.

Each tab has it’s own specific variable:

TRSAchievements.Summary: TRSAchievementsSummary
TRSAchievements.Quests: TRSQuestList
TRSAchievements.Diaries: TRSDiaryList

So if you want to use TRSDiaryList.GetLevel for example you would do this:

WriteLn Achievements.Diaries.GetLevel(ERSAchievementDiary.ARDOUGNE);

Achievements.SetupGameTab();¶

procedure TRSAchievements.SetupGameTab();

Internal method used to setup the TRSAchievements coordinates.

This is automatically called for you on the Achievements variable.

Achievements.IsOpen¶

function TRSAchievements.IsOpen(): Boolean;

Returns true/false if the inventory is open.

Example:

WriteLn Achievements.IsOpen();

Achievements.Open¶

function TRSAchievements.Open(): Boolean;

Attempts to open the inventory gametab.

Example:

WriteLn Achievements.Open();

Achievements Tabs¶

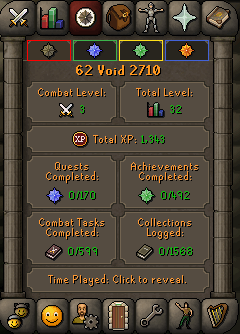

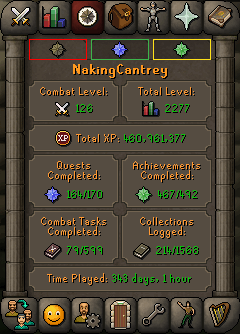

The Achievements tabs are dynamic as one of them can be hidden away on certain types of accounts: 3 tabs 4 tabs To handle this, you have the 2 following methods, they are used automatically for you on the Achievements variable.

Achievements.CountTabs¶

function TRSAchievements.CountTabs(): Integer;

Internal method used to count the available tabs on the Achievements gametab.

Achievements.SetupTabs¶

procedure TRSAchievements.SetupTabs();

Internal method used to update the coordinates of the tabs on the Achievements gametab.

This is automatically used for you.

Achievements.GetTab¶

function TRSAchievements.GetTab():  ERSAchievementTab;

Returns the currently active ERSAchievementTab.

Example:

WriteLn Achievements.GetTab();

Achievements.OpenTab¶

function TRSAchievements.OpenTab(tab:  ERSAchievementTab): Boolean;

Attempts to open the specified tab ERSAchievementTab.

Example:

WriteLn Achievements.OpenTab( ERSAchievementTab.DIARIES);

Achievements variable¶

Global TRSAchievements variable.

TRSDiaryList.GetLevel¶

function TRSDiaryList.GetLevel(diary: ERSAchievementDiary): Integer;

Returns the current completion level of the specified diary. The level will be between -1 and 4. -1 is returned if we fail.

Example:

WriteLn Achievements.Diaries.GetLevel(ERSAchievementDiary.MORYTANIA);
