RSInterface Controls¶

This page is about controls on runescape interfaces. These can be buttons, scrollbars, dropdowns, checkboxes, etc.

TRSButton¶

RuneScape has several types of buttons, TRSButton can be used for several of them but it’s made specifically for buttons that have an “enabled” and “disabled” state:

You can also use them very effectively for this type of buttons that are “linked” together:

With “linked”, it means that enabling one, disabled the linked one(s).

You can also use them for other types of buttons and imagination is the limit but in a lot of cases you won’t be able to make use of the TRSButton methods.

TRSButton.Enabled¶

function TRSButton.Enabled(): Boolean;

Returns True/False if the button is enabled.

Example:

WriteLn Button.Enabled();

TRSButton.WaitEnabled¶

function TRSButton.WaitEnabled(time: Integer = 600; interval: Integer = -1): Boolean;

Returns True if the button is enabled within time milliseconds.

Example:

WriteLn Button.WaitEnabled();

TRSButton.Click¶

procedure TRSButton.Click(button: EMouseButton = EMouseButton.LEFT);

Clicks a {ref]TRSButton with the specified mouse button which by default is the left one.

Example:

Button.Click();

TRSButton.Enable¶

function TRSButton.Enable(): Boolean;

Attempts to enable a {ref]TRSButton. This is done with the left mouse click and the function returns true if TRSButton.Enabled returns true.

Example:

WriteLn Button.Enable();

TRSButton.Disable¶

function TRSButton.Disable(): Boolean;

Attempts to disable a {ref]TRSButton. This is done with the left mouse click and the function returns true if TRSButton.Enabled returns false.

Example:

WriteLn Button.Disable();

TRSSlider¶

A record meant to handle sliders in the game interfaces:

TRSSlider.GetLevel¶

function TRSSlider.GetLevel(): Integer;

Returns the slider level from 0 to 100. It’s important to keep in mind that while we use a scale from 0 to 100, don’t have that many “levels”.

For example, the brightness slider only have 5 or 6 possible positions.

Example:

WriteLn slider.GetLevel();

TRSSlider.SetLevel¶

function TRSSlider.SetLevel(level: Integer): Boolean;

Attempts to set the slider to the specified level.

Example:

WriteLn slider.SetLevel(60);

TRSScrollBar¶

Record to handle the game interface’s scrollbars:

TRSScrollBar.Setup¶

procedure TRSScrollBar.Setup();

Method used to setup several TRSScrollBar internal variables. When creating a TRSScrollBar you should first setup it’s Area variable and then call this.

Example:

scroll.Area.X1 := Bank.Bounds.X1 + 5;
scroll.Area.Y1 := Bank.Bounds.Y1 + 78;
scroll.Area.X2 := Bank.Bounds.X2 - 22;
scroll.Area.Y2 := Bank.Bounds.Y2 - 44;
scroll.Setup();

TRSScrollBar.IsVisible¶

function TRSScrollBar.IsVisible(): Boolean;

Returns True/False if the scrollbar is visible.

Example:

WriteLn Bank.Scroll.IsVisible();

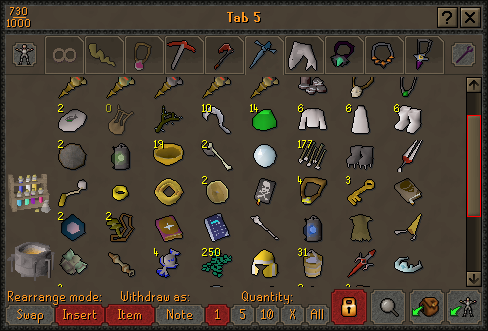

TRSScrollBar.Slider¶

property TRSScrollBar.Slider: TBox;

Returns a TBox of the scrollbar slider.

Example:

ShowOnTarget(Bank.Scroll.GetSlider());

TRSScrollBar.CanScroll¶

function TRSScrollBar.CanScroll(): Boolean;

Returns True/False if the scrollbar is “scrollable”.

A scrollbar is not scrollable if it’s not visible or if the slider occupies the whole space available.

Example:

WriteLn Chat.Scroll.CanScroll();

TRSScrollBar.GetLevel¶

function TRSScrollBar.GetLevel(): Integer;

Returns the level of the scrollbar. This is a percentage between the available space and the slider size.

Example:

WriteLn Chat.Scroll.GetLevel();

TRSScrollBar.ScrollArea¶

property TRSScrollBar.ScrollArea: TBox;

Returns a area where you can scroll the mouse, using TBiometrics between TRSScrollBar.Area and TRSScrollBar.Bounds.

Example:

ShowOnTarget(Chat.Scroll.GetScrollArea());

TRSScrollBar.SetLevel¶

function TRSScrollBar.SetLevel(value: Integer): Integer;

Attempts to set a scroll level on a scrollbar.

Example:

WriteLn Chat.Scroll.SetLevel(50);

TRSScrollBar.Scroll¶

function TRSScrollBar.Scroll(amount: Integer; down: Boolean): Boolean;

Scroll amount amount of times in a direction decided by down.

Example:

WriteLn Chat.Scroll.Scroll(3, True);

TRSDropDownOption¶

Helper record to handle TRSDropDown options.

TRSDropDown¶

Record to handle drop downs in the game interfaces:

TRSDropDown.Setup¶

procedure TRSDropDown.Setup(options: TStringArray);

Sets up a TRSDropDown internal variables.

This has to be used after the TRSDropDown.Bounds variable is already set.

Example:

DropDown.Setup(['Fixed - Classic layout', 'Resizable - Classic layout', 'Resizable - Modern layout']);

TRSDropDown.IsVisible¶

function TRSDropDown.IsVisible(): Boolean;

Returns true if a TRSDropDown is visible.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].IsVisible();

TRSDropDown.IsOpen¶

function TRSDropDown.IsOpen(): Boolean;

Returns true if a TRSDropDown is open.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].IsOpen();

TRSDropDown.WaitOpen¶

function TRSDropDown.WaitOpen(time: Integer = 600; interval: Integer = -1): Boolean;

Returns true if TRSDropDown.IsOpen returns true within time milliseconds.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].WaitOpen();

TRSDropDown.Open¶

function TRSDropDown.Open(): Boolean;

Attempts to open a TRSDropDown.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].Open();

TRSDropDown.Close¶

function TRSDropDown.Close(): Boolean;

Attempts to close a TRSDropDown.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].Close();

TRSDropDown.GetSelected¶

function TRSDropDown.GetSelected(): Integer;

Returns the index of the currently selected option on a TRSDropDown.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].GetSelected();

TRSDropDown.Select¶

function TRSDropDown.Select(index: Integer): Boolean;
function TRSDropDown.Select(option: String): Boolean; overload;

Attempts to select an option on a TRSDropDown.

You can either use an option index or substring of an option. If you use a substring, the first match will be used.

Example:

WriteLn Options.DropDowns[ERSOptionsDropDown.CLIENT_MODE].Select('Fixed');
